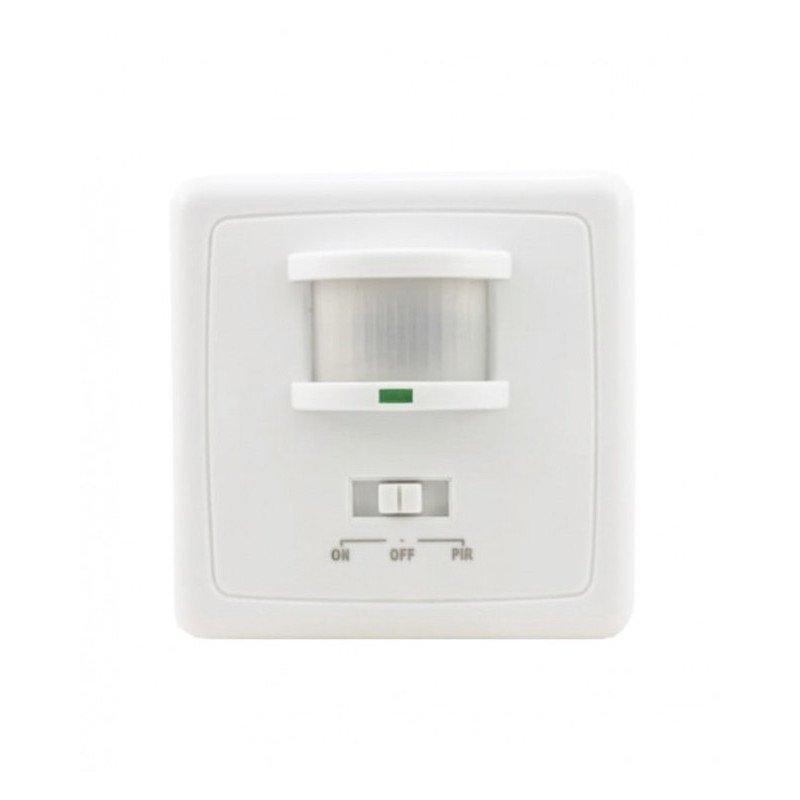

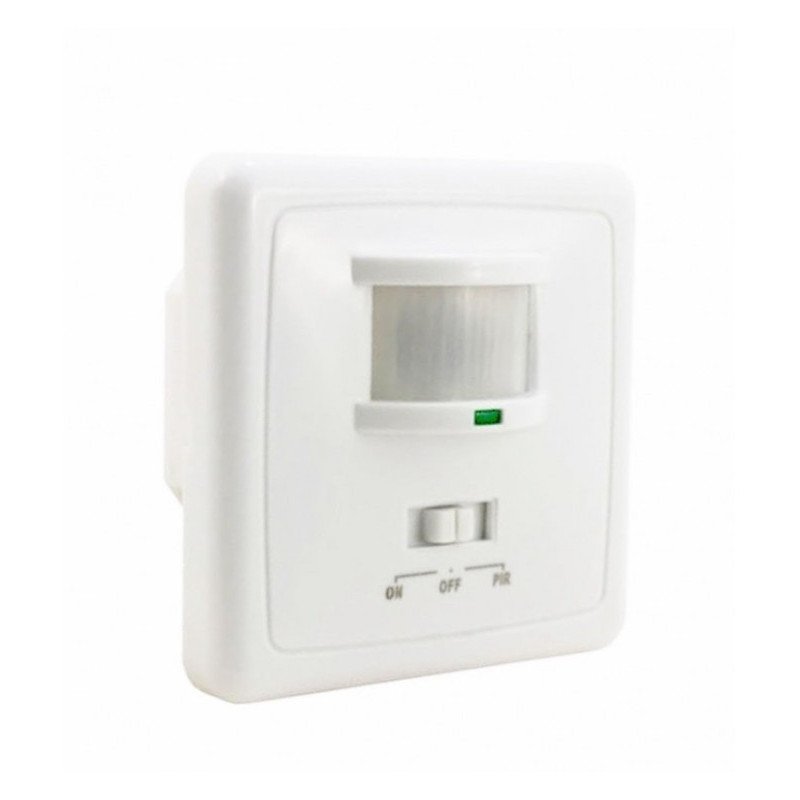

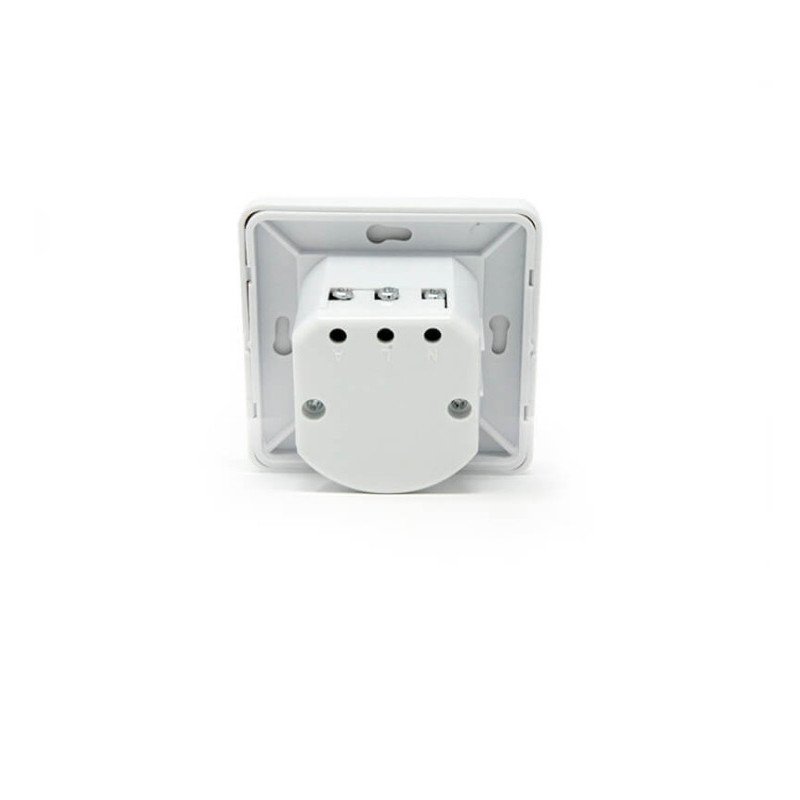

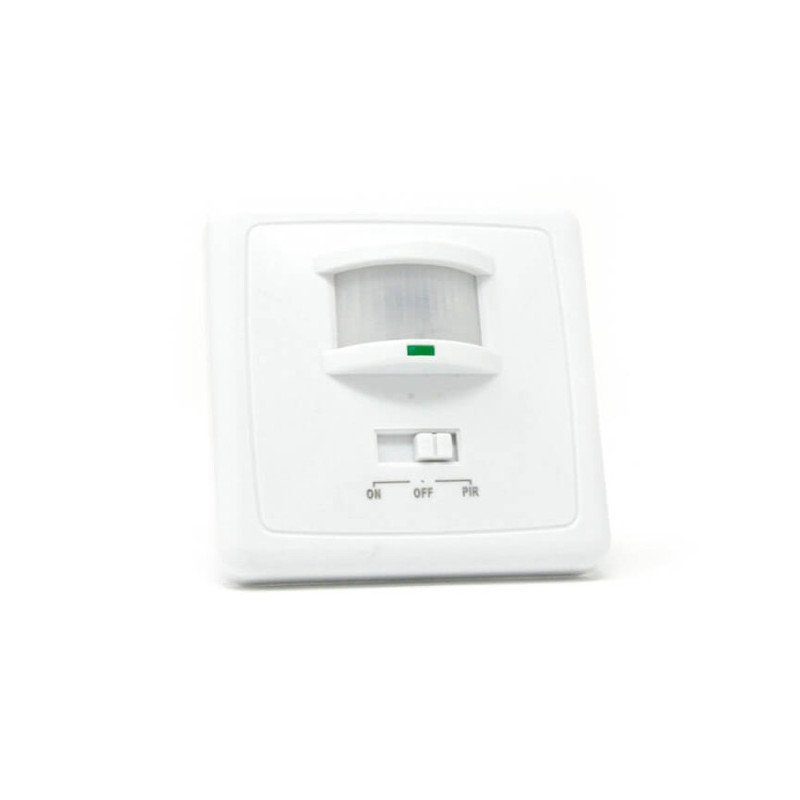

LED Wall Motion Sensor 160° Indoor
LED-00133
Certificates
CE - ROHS
Dimensions (mm)
80 x 80 x 47 mm
Rated Power
1200W (Incandescent) 300W (LED)
Beam Angle (º)
160º
New product
Indoor wall-mounted motion sensor featuring a 160° detection angle. Designed for energy-efficient control of LED and incandescent lighting, compatible with loads up to 200W LED and 600W incandescent. IP20 rated, suitable for hallways and indoor passage areas. Operates reliably between -20°C and 55°C with 100,000 switching cycles.
914 Items
More info
This wall-mounted motion detector starts operating when it detects any movement in the monitored area. It is a recessed presence sensor with invisible infrared emissions and no radiation. With a 160° detection angle, it is ideal for controlling indoor areas such as hallways and passage spaces (IP20). Designed for lower power consumption and compatible with LED lighting (up to 200W for LED and 600W for incandescent).
Technical Specifications
The sensor measures 80 mm in width, 80 mm in height, and 47 mm in depth, making it compact for wall installation. It supports a frequency range of 50 to 60 Hz, suitable for various electrical standards.
With an operating temperature range from -20°C to 55°C, the sensor can perform reliably in typical indoor environments.
The device is rated for 100,000 switching cycles, which ensures durability and long service life.
Performance and Compatibility
Featuring a wide 160° detection angle, the sensor effectively covers corridors and passageways to detect movement efficiently.
It is compatible with LED lighting up to 200W and incandescent lighting up to 600W, allowing versatile integration with different lighting systems.
Designed for energy saving, it helps reduce unnecessary power usage by automating lighting control based on occupancy.
Frequently Asked Questions
What types of lighting can the motion sensor control?
The sensor can control LED lighting with a maximum load of 200W and incandescent lighting up to 600W.
Is this sensor suitable for outdoor use?
No, with an IP20 rating, this sensor is designed for indoor use only and should be installed in protected areas away from water and dust exposure.
What is the detection range of the sensor?
The sensor provides a detection angle of 160°, ideal for monitoring hallways and indoor passage spaces.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Warranty years
3
Dimensions (mm)
80 x 80 x 47 mm
Rated Power
1200W (Incandescent) 300W (LED)
Rated Voltage
220V-240V AC
Estimated LED Diode Life (H)
30.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Beam Angle (º)
160º
Range (m)
9 m.
Switching On Time
Min: 10 Sec (+ - 3 sec) Max: 7 min. (+- 2m.)
