LED GXtronic Module IP65 9W/12W/15W 4CCT for GU10/MR16
LED-00948
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC

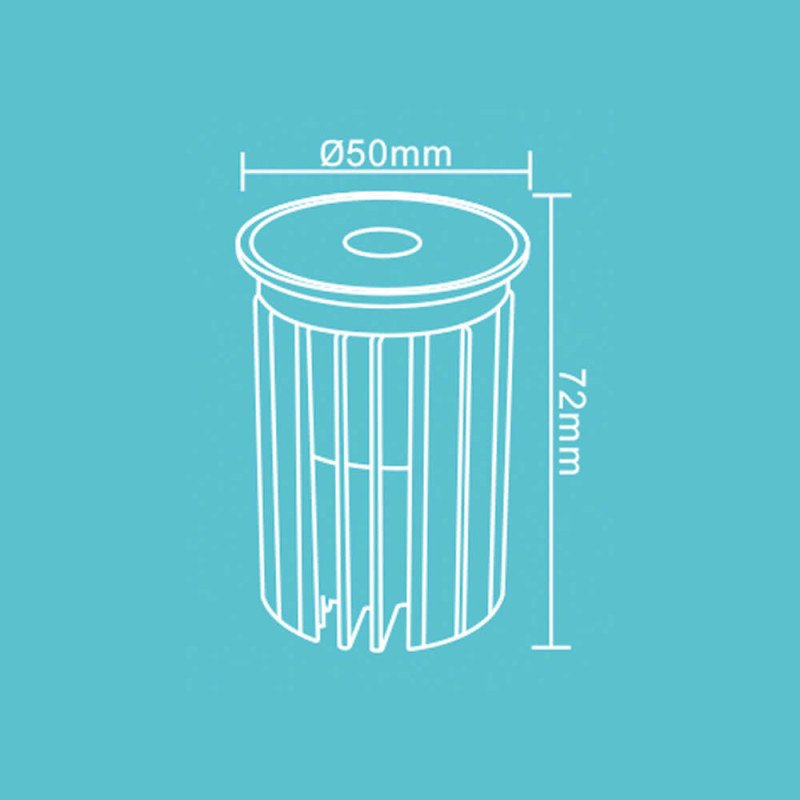

Dimensions (mm)
Ø50*72mm
Rated Power
Select Power: 9W/12W/15W
Beam Angle (º)
24º
New product
The LED GXtronic Module IP65 offers a versatile lighting solution with selectable power (9W/12W/15W) and color temperatures (2700K, 3000K, 4000K, 5700K). Featuring a Bridgelux COB chip, CRI 92 for excellent color rendition, and IP65-rated aluminum and PC construction, it suits demanding outdoor applications.
2109 Items
More info

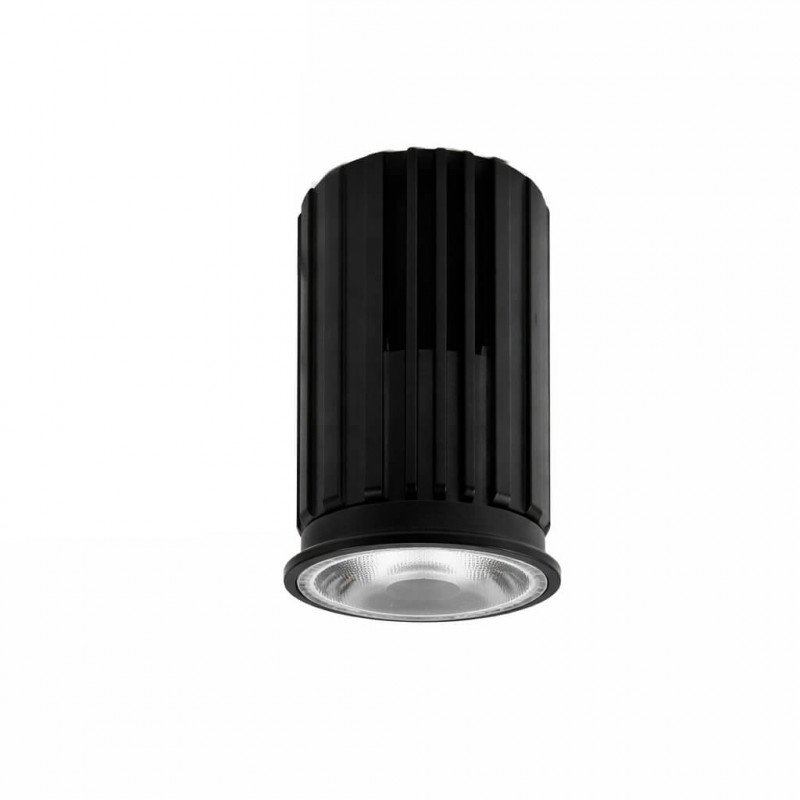

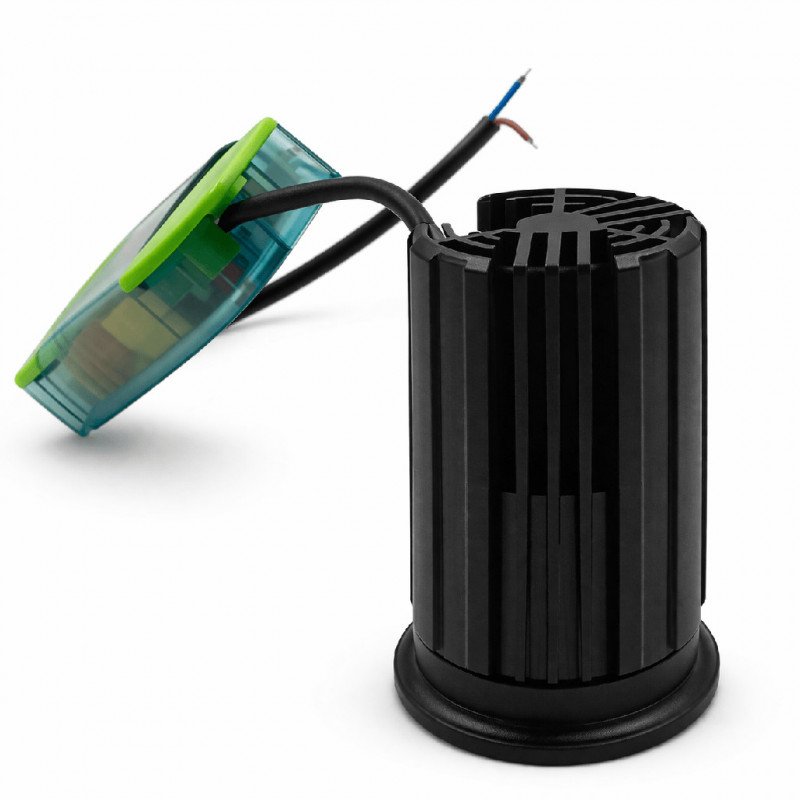

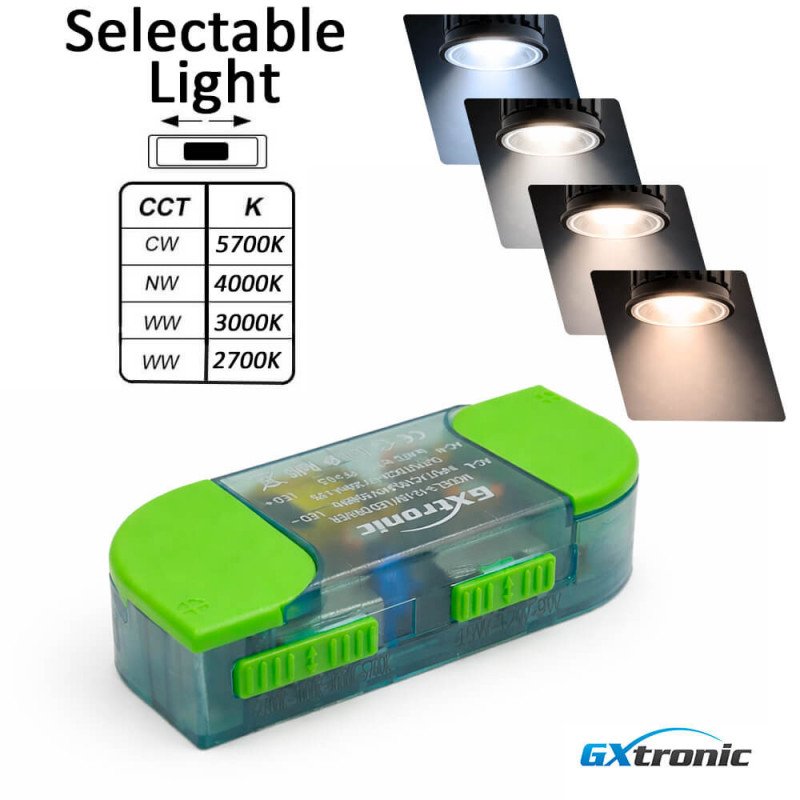

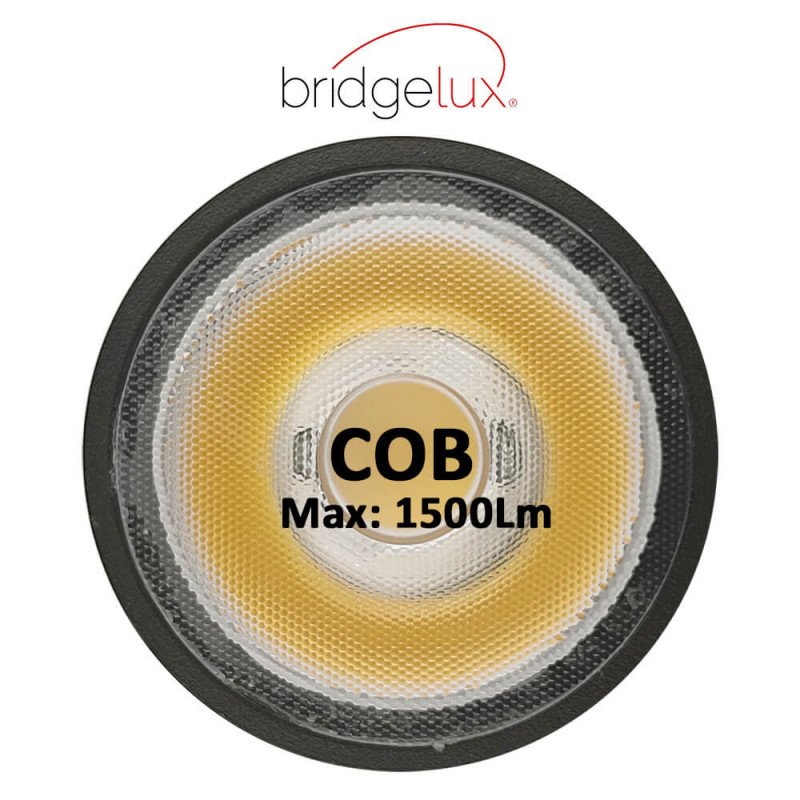

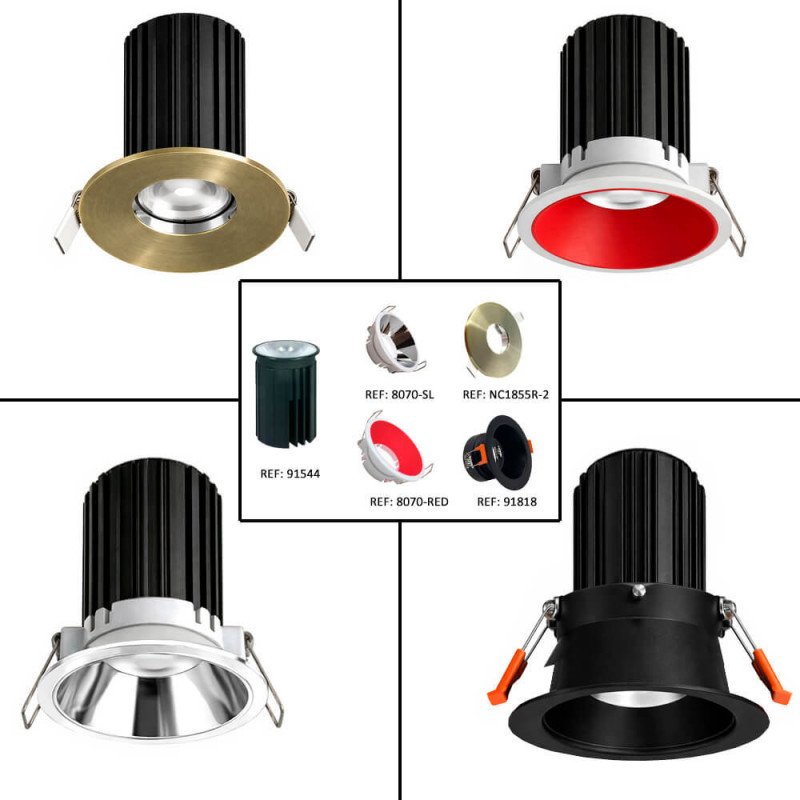

The GXtronic LED module for IP65 GU10/MR16 trims is a professional outdoor solution, featuring a 9W/12W/15W power selector to adjust brightness to your space. It includes a Bridgelux high-efficiency chip (130 lm/W) and 4CCT selectable technology (2700K, 3000K, 4000K and 5700K) so you can choose the color temperature. It also offers CRI92 for more accurate color rendering. Ideal for installations where performance, versatility, and IP65 protection are required.
High-Quality Construction and Protection

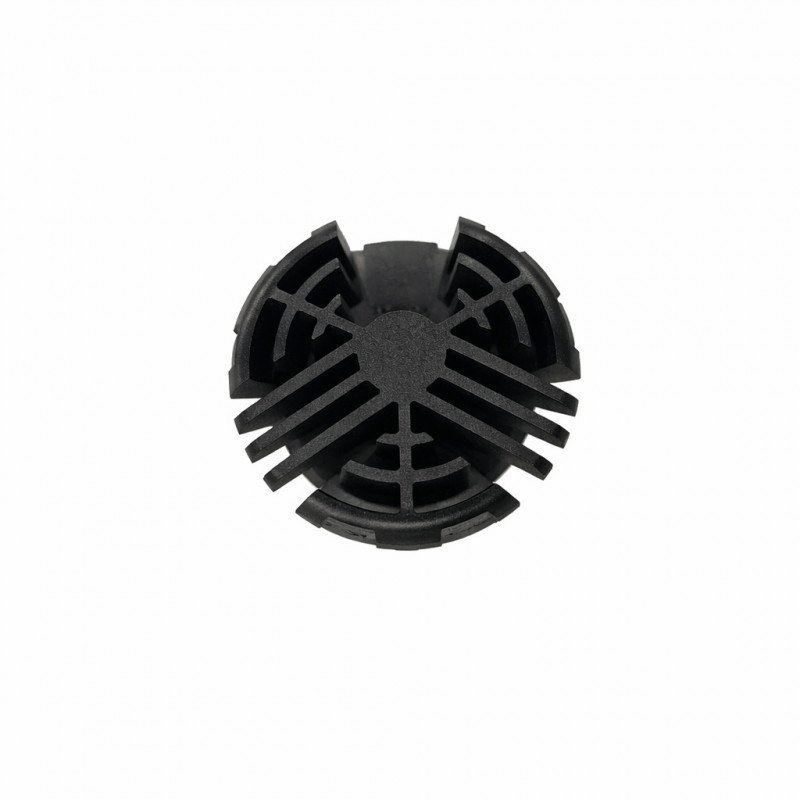

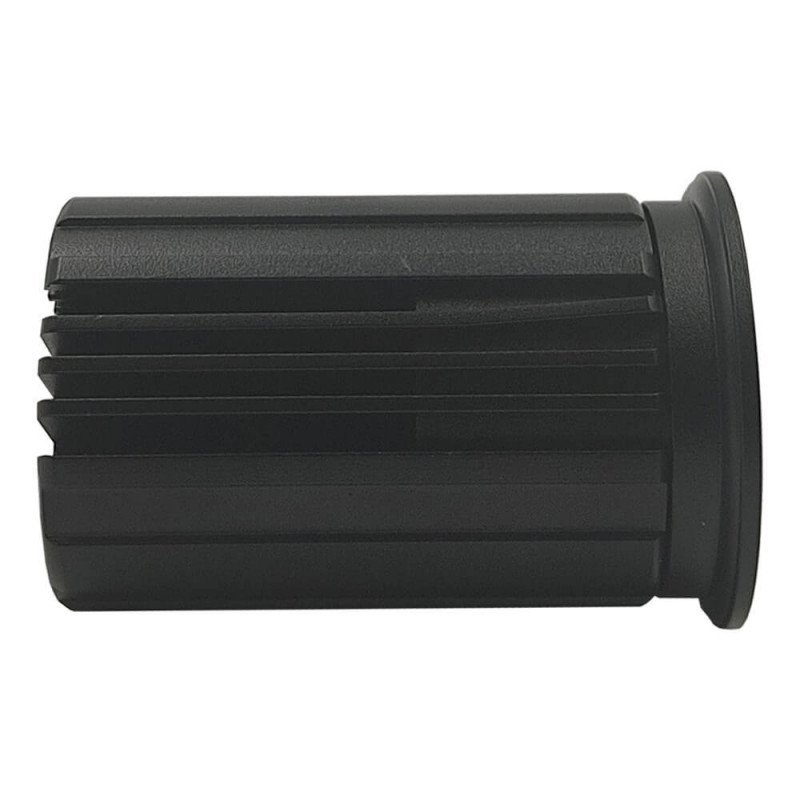

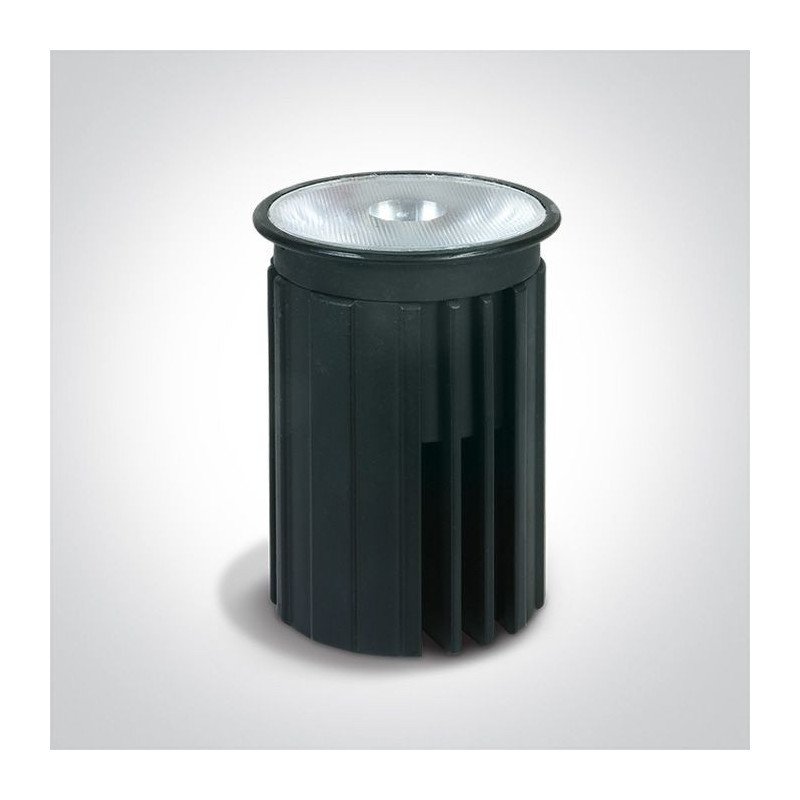

This LED module is made from durable aluminum combined with polycarbonate, providing robust protection suitable for exterior use. Rated IP65, it is resistant to water jets and dust ingress, ensuring reliable operation in outdoor environments.
Advanced Driver Technology

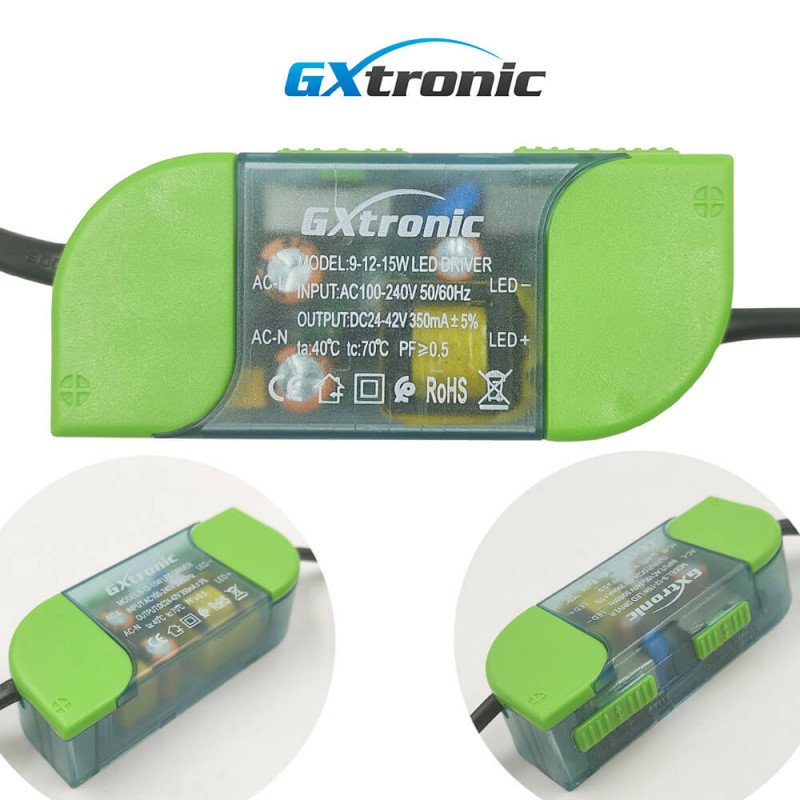

Equipped with the GXTronic driver, this module offers flicker-free illumination, enhancing visual comfort and reducing eye strain. Compatibility with 100-240 V voltage range and 50/60 Hz frequency ensures flexibility across various electrical standards.
Optical Performance

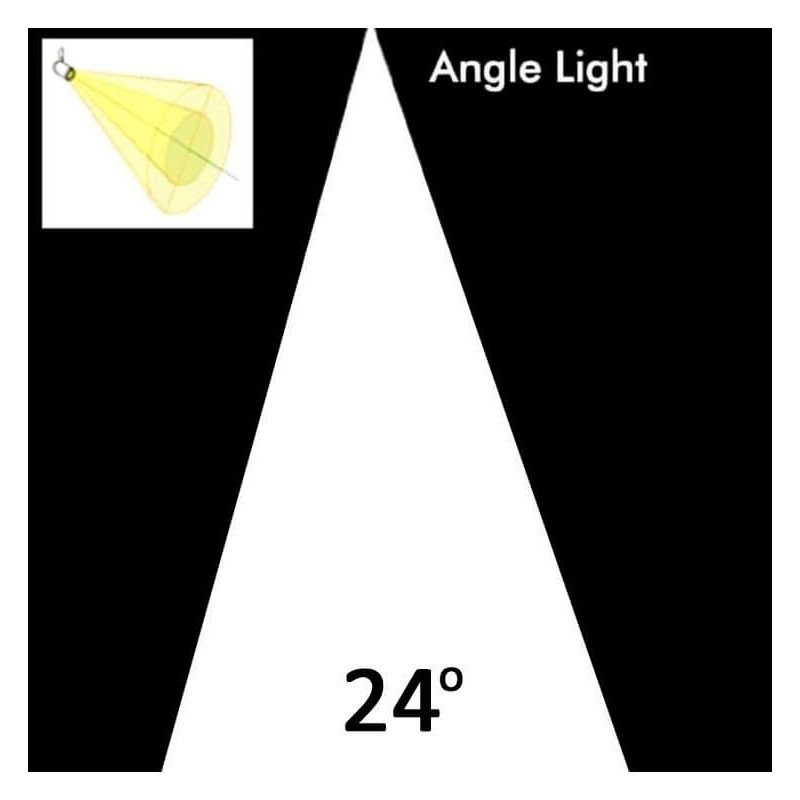

Featuring a 24° beam angle, the LED module delivers focused lighting ideal for accent or task lighting scenarios. Its 100 lm/W luminaire efficacy means efficient performance tailored for GU10 and MR16 trims.
Frequently Asked Questions
Can the color temperature be changed after installation?
Yes, the 4CCT selectable technology allows choosing among four color temperatures (2700K, 3000K, 4000K, 5700K) to suit different ambiance needs.
Is this LED module suitable for outdoor use?
Yes, with an IP65 rating and durable aluminum plus PC construction, it is designed for outdoor applications requiring protection against water and dust.
Does the module support dimming?
The product information does not specify dimming capability, so it should be assumed not supported unless otherwise confirmed.

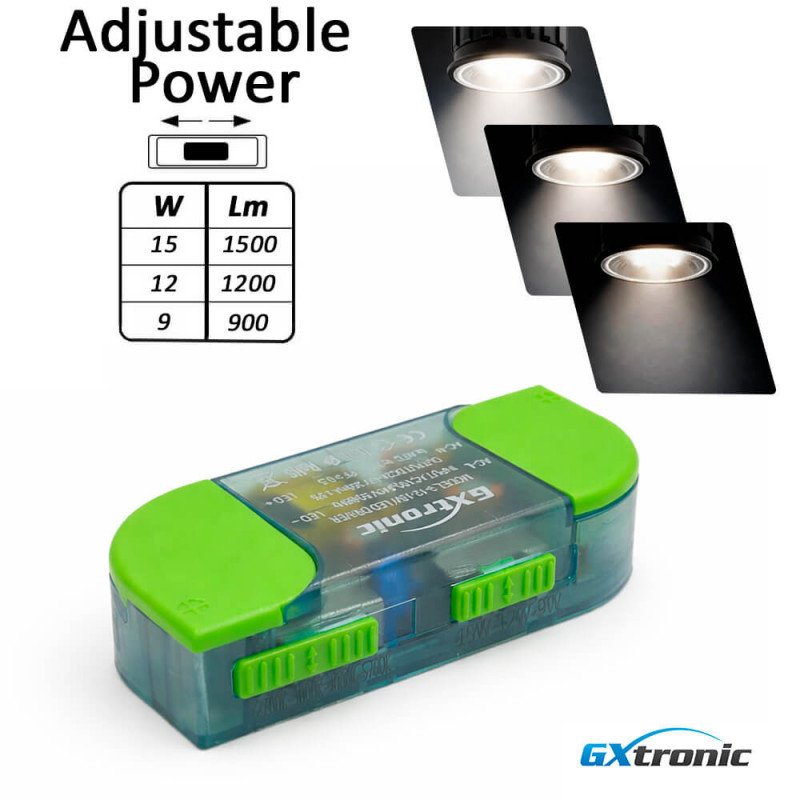

What are the available power settings?
The module features a power selector with options of 9 W, 12 W, and 15 W, allowing adjustment of brightness to match your lighting requirements.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP65-Exterior
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
Ø50*72mm
Rated Power
Select Power: 9W/12W/15W
Rated Voltage
100-240V
CRI - Color Rendering Index
92
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
30.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
+40ºC ~ -20ºC
Light Temperature
4CCT Select: 2700K/3000K/4000K/5700K
Luminous Flux-Lm
1500 LM

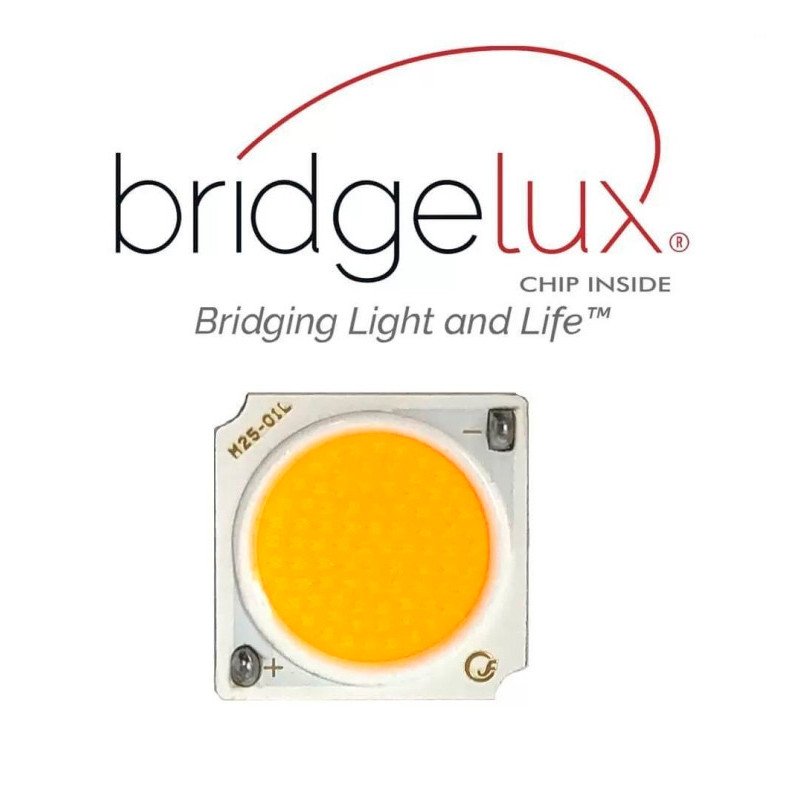

LED Type
COB Chip BRIDGELUX
Beam Angle (º)
24º
Luminous Efficacy (Lm/W)
100Lm/W
Driver Included
GXTronic - Driver No Flick -
GU10, MR16 and G4 LED bulbs for spotlights and luminaires
GU10, MR16 and G4 LED bulbs provide an efficient and durable replacement for traditional halogen light sources while producing less heat. These formats are commonly used in recessed spotlights, ceiling lights, wall lamps, display cabinets, furniture lighting, cooker hoods and decorative luminaires.
At DomiLED you will find bulbs with different power ratings, luminous outputs, beam angles and colour temperatures. To select the correct model, always check both the cap type and the operating voltage of the installation.
What is the difference between GU10, MR16 and G4?
- GU10 LED bulbs: feature two short twist-lock pins and normally operate directly at 220-240 V. They are widely used in ceiling spotlights, track lighting and adjustable luminaires.
- MR16 or GU5.3 LED bulbs: use two thin pins spaced approximately 5.3 mm apart and generally operate at 12 V through a compatible transformer or driver. MR16 mainly describes the shape and size of the reflector.
- G4 LED bulbs: are compact capsule lamps with two pins spaced 4 mm apart. They are used in decorative lamps, furniture, display cabinets, caravans and other small luminaires, usually with a 12 V power supply.
How to choose the correct LED bulb
In addition to the cap and voltage, compare the number of lumens, as this indicates the actual amount of light produced. Wattage measures electricity consumption, but two bulbs with the same wattage may provide different brightness levels depending on their efficiency.
The beam angle also affects the lighting result. A narrow beam concentrates the light and is suitable for highlighting products, objects or specific areas. A wide beam distributes light more evenly and is better suited to rooms, hallways and general circulation areas.
Colour temperature and dimmable LED bulbs
Warm white light creates a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, bathrooms and shops, while cool white produces a brighter appearance for work areas.
If the installation uses a brightness controller, choose a dimmable LED bulb and make sure the dimmer is compatible with LED technology. For MR16 and G4 installations, transformer compatibility must also be checked, as some transformers designed for halogen lamps require a minimum load and may cause flickering.
Explore our selection of GU10, MR16 GU5.3 and G4 LED bulbs and find the correct format, brightness and light colour for upgrading your spotlights and luminaires.
