LED High Bay Surge Protector 20kV IP67 (Series)
LED-00253
Certificates
CE - ROHS-TÜV
Construction Material
Thermoplastic
Dimensions (mm)
L64×W22×H30mm
New product
IP67 series surge protector against transient surges up to 20kV (20,000 V) to protect LED equipment and luminaires.
57 Items
More info
Transient surge protector up to 20kV for series installation. When electronic components operate in lighting systems, transient mains voltage spikes can occur due to inductive switching, atmospheric discharges, or induced voltages in parallel cables. This protection module reduces overvoltage at the connection terminals, routing any residual voltage to an appropriate level based on the discharge current, helping to secure your equipment and LED luminaires.

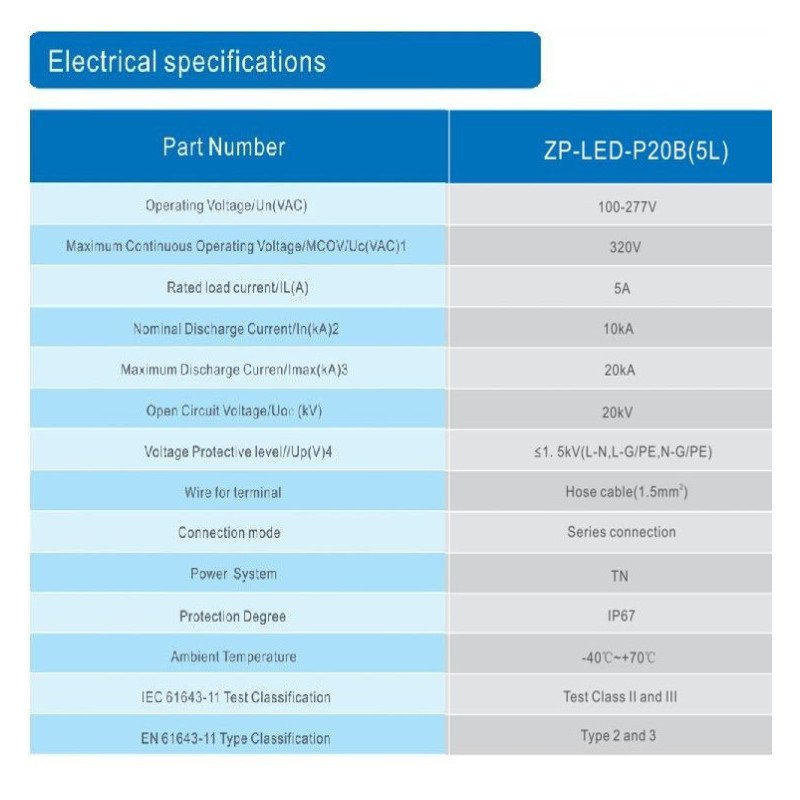

View technical specifications Hide technical specifications
Certificates
CE - ROHS-TÜV
IP Rating
IP67-Exterior
Construction Material
Thermoplastic
Warranty years
3
Dimensions (mm)
L64×W22×H30mm
Rated Voltage
110-277V
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-40ºC ~ +85ºC
Additional Information
Max. 20.000v (20Kv)
