LED-00194

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) Ø225mm x H50mm

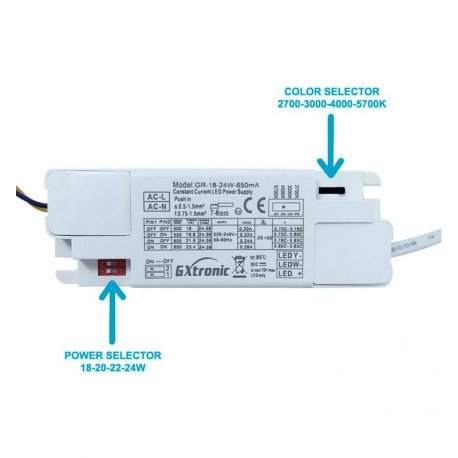

Rated Power 24W - 22W- 20W -18W
Beam Angle (º) 120º

New product

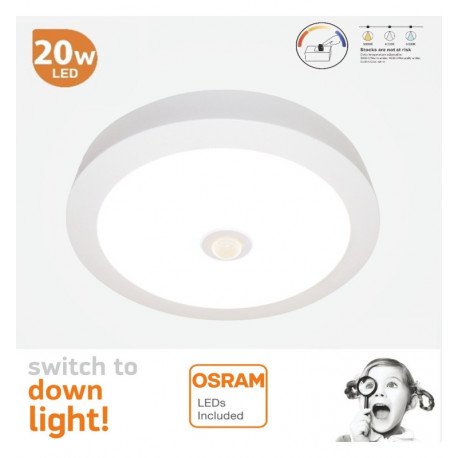

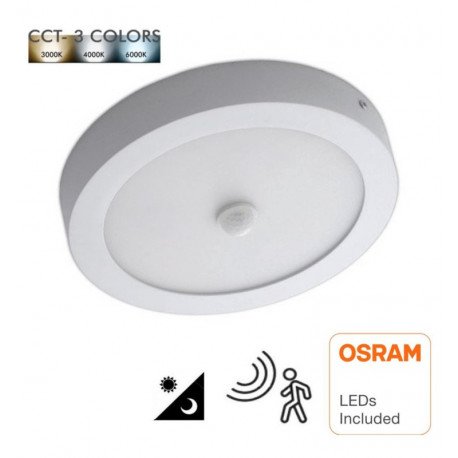

Circular surface-mounted LED ceiling light with motion sensor and CCT, OSRAM chip, white finish. 24W (22W/20W/18W). Detection range 6 m.

More details

690 Items

30,83 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) Ø225mm x H50mm
Rated Power 24W - 22W- 20W -18W
Rated Voltage 85V-265V
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A+
LED Diode Efficacy (Lm/W) 140 Lm/W
Estimated LED Diode Life (H) 40.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) F

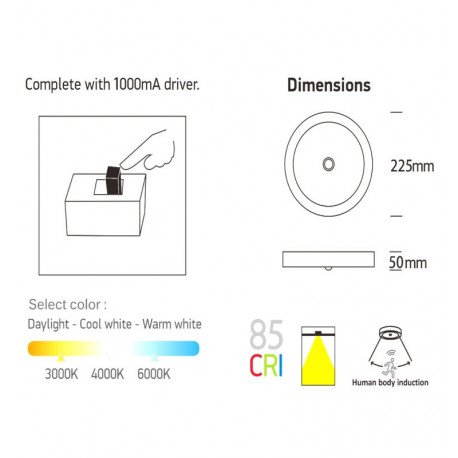

Light Temperature COLOR SELECTABLE: 3000K-4000K-6000K
Luminous Flux-Lm 2200Lm
LED Type SMD 2835
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 110Lm/W
Driver Included SI
Control Modes INFRARED
Range (m) 6 m.
Glare Index (UGR) 17

More info

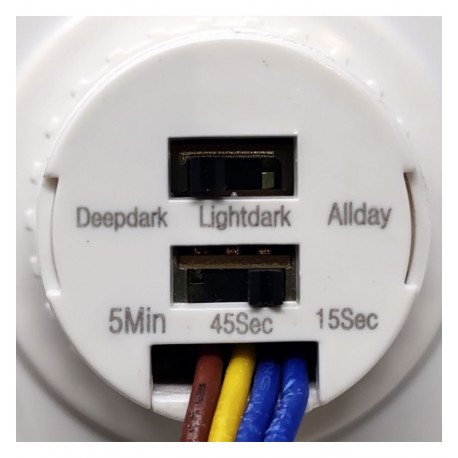

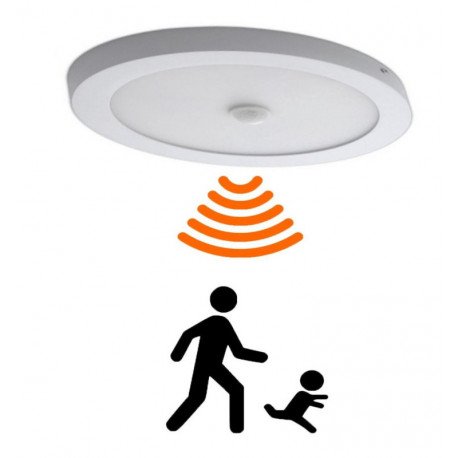

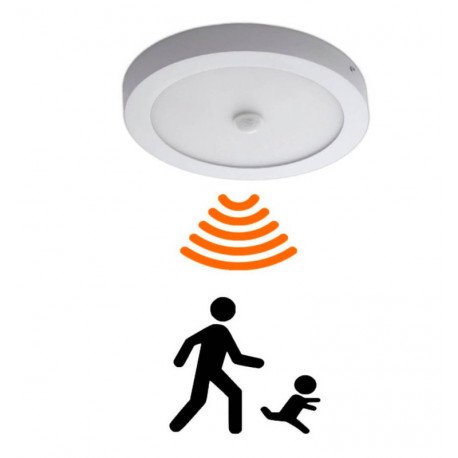

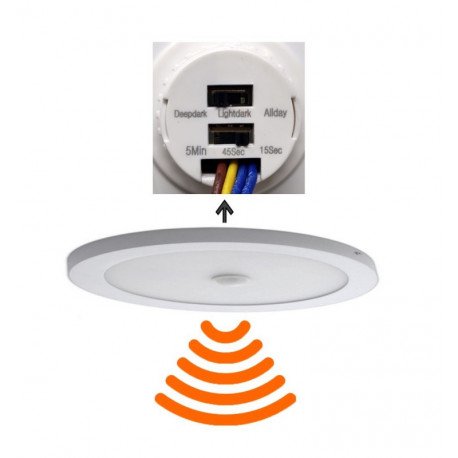

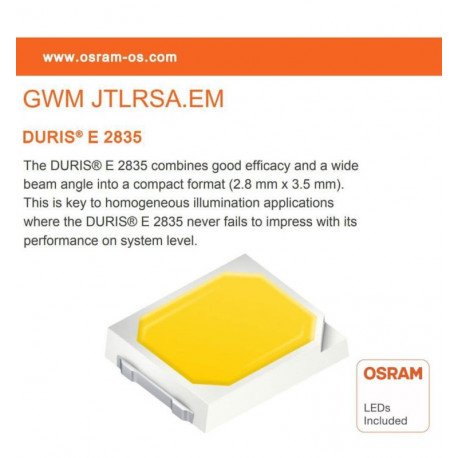

Circular surface-mounted LED ceiling light with motion sensor and CCT, made of aluminum + PMMA with a white finish. Features an OSRAM DURIS E 2835 chip and adjustable power: 24W - 22W - 20W - 18W, ideal for walkways and passage areas. Detection range: 6 meters. Light-on time: 30 seconds, with 3 selectable time settings: 15 seconds, 45 seconds, and 5 minutes. The sensor turns the light on when motion is detected, and with a daylight (luminosity) detector it operates when natural light starts to fade. Detection time: 30 seconds (adjustable).
