LED High Bay 50W Rectangular Outdoor Bollard Wanda BRIDGELUX

Certificates CE - ROHS
Construction Material Steel + Aluminium +PMMA

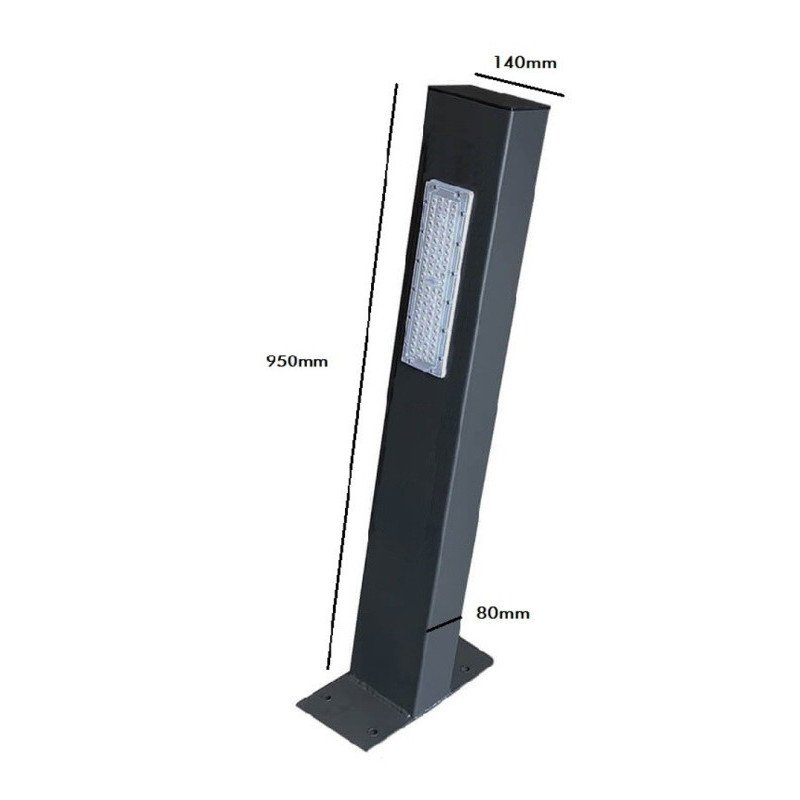

Dimensions (mm) H950mm x 140 mm x 80 mm (Tube 3mm)
Rated Power 50w
Beam Angle (º) 136x78º

New product

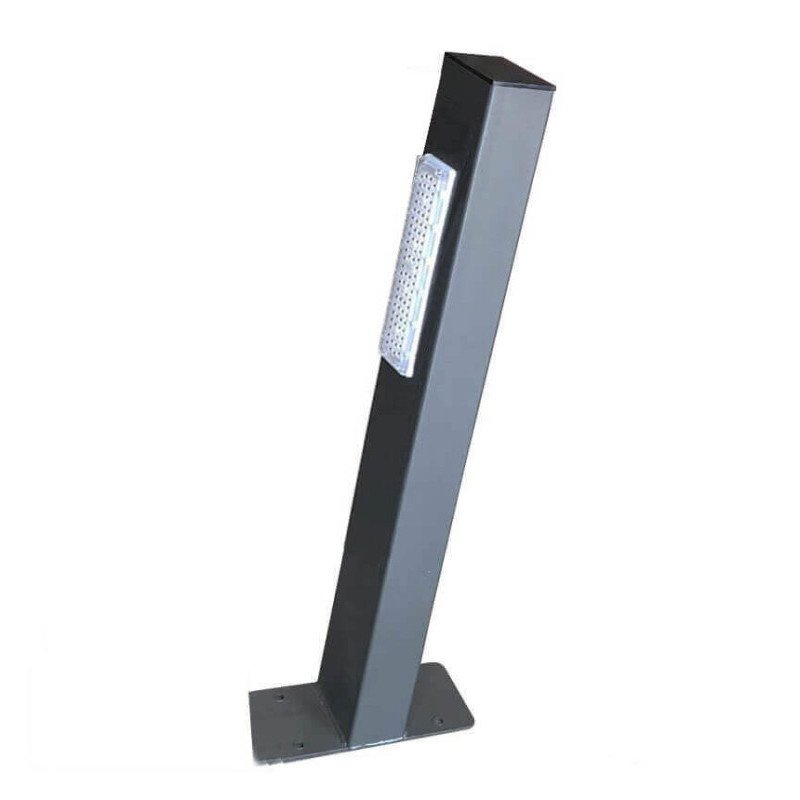

The Wanda Rectangular 50W LED bollard features a robust BRIDGELUX chip module delivering an estimated 7500 lm with high efficacy of 150 lm/W. Constructed from steel, aluminum, and PMMA with IP67 and IK10 ratings, it is suitable for demanding outdoor environments and offers neutral or cool white color options.

39 Items

Order now and receive it The day after tomorrow

236,99 € tax incl.

Métodos de pago

More info

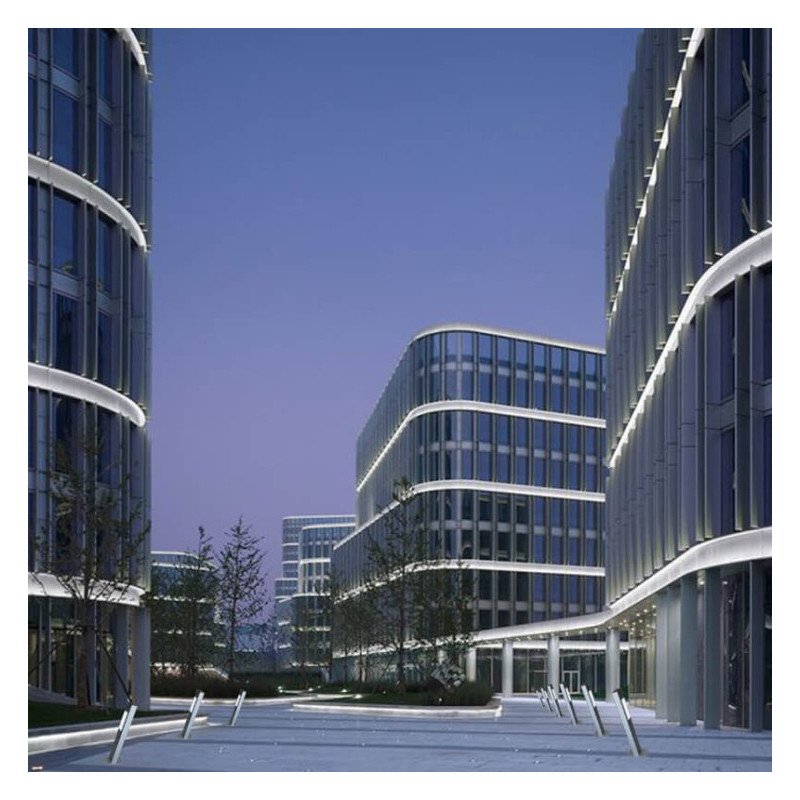

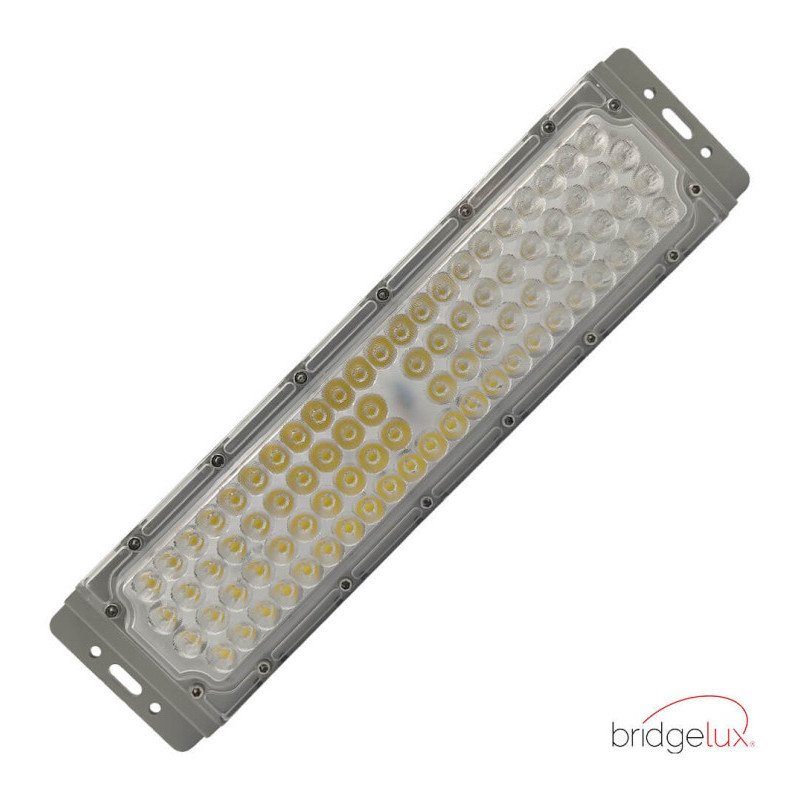

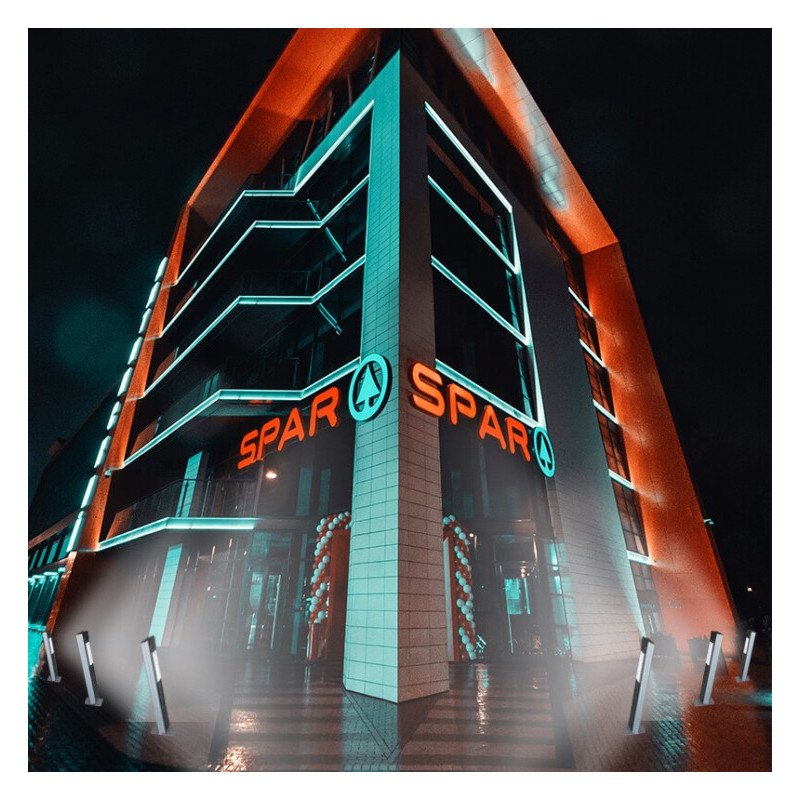

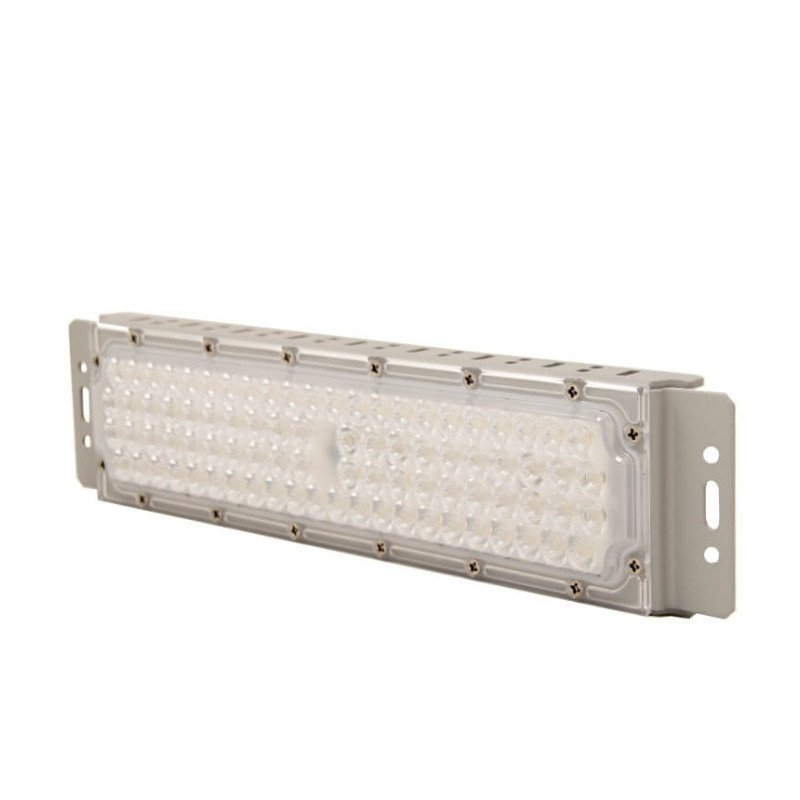

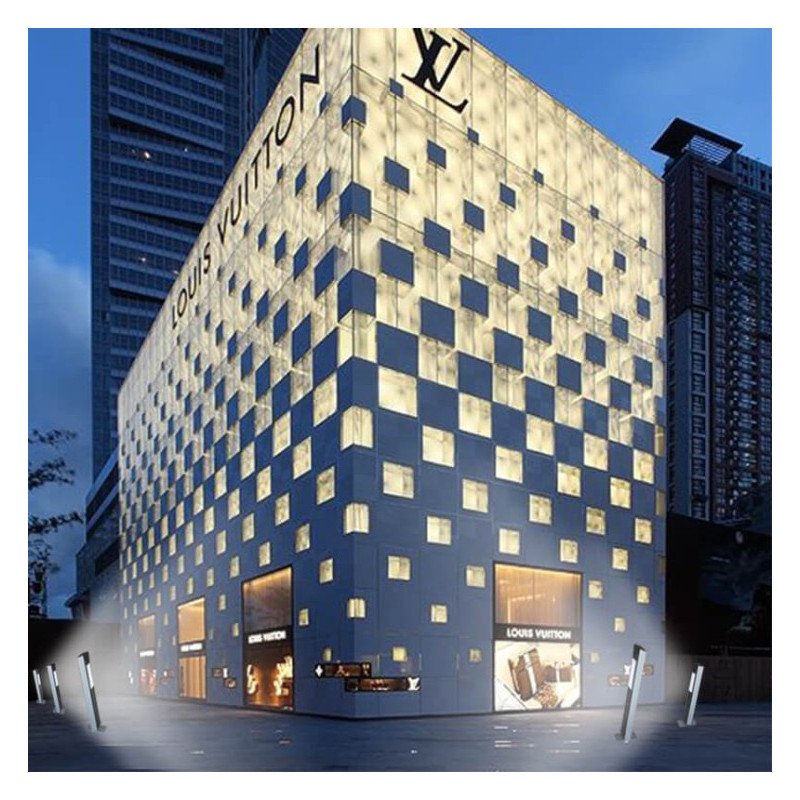

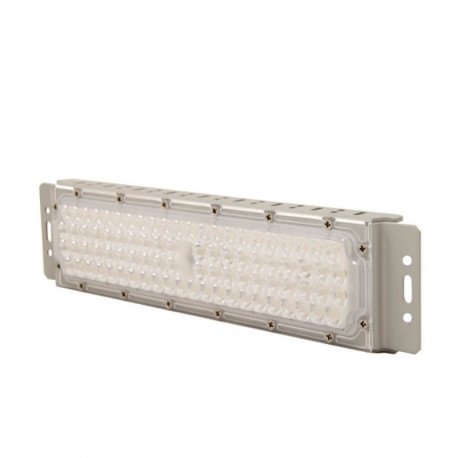

Wanda Rectangular 50W LED bollard with a BRIDGELUX CHIP optical module. Replaces older E40 and E27 bulbs, delivering up to 7500 lumens. Features 1 optical module with 84 SMD 3030 2D LED diodes and an opening angle of 136°x78°. Its architectural design helps create uniform lighting in urban and outdoor spaces. Choose your light temperature: neutral white 4000K or cool white 5000K. Made of oven-painted steel with epoxy paint for reliable installation and a longer service life thanks to efficient heat dissipation.

Durability and Weather Resistance

Designed to withstand harsh outdoor conditions, this bollard boasts an IP67 ingress protection rating ensuring complete protection against dust and powerful water jets. Its IK10 impact rating provides excellent resistance to mechanical impacts, making it ideal for public and urban spaces requiring rugged lighting solutions.

Temperature and Reliability

Operating reliably within a temperature range from -15° to 70°C, the Wanda bollard is well-suited for diverse climates. It supports 100,000 switching cycles with a fast startup time of just 0.2 seconds, ensuring almost instantaneous illumination without delay.

Lighting Performance and Quality

Equipped with a Bridgelux 2240 DS-30 LED chip array and a highly efficient driver, it delivers consistent luminous output with a CRI greater than 80, enhancing color rendering for outdoor visibility and ambiance. The wide beam angle supports uniform light distribution, suitable for varied architectural and urban applications.

Frequently Asked Questions

What color temperatures are available for this bollard?

You can select between neutral white at 4000K and cool white at 5000K when ordering.

What materials are used in the construction of this bollard?

The bollard is made of steel, aluminum, and PMMA, offering robust construction and effective heat dissipation.

Is this bollard suitable for extreme temperatures?

Yes, it is rated to operate reliably from -15°C up to 70°C, accommodating a wide range of environmental conditions.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP67-Exterior
Construction Material Steel + Aluminium +PMMA
Warranty years 5
Dimensions (mm) H950mm x 140 mm x 80 mm (Tube 3mm)
Rated Power 50w
Rated Voltage 220V-240V AC
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 186 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -15ºC ~ +70ºC
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K - 5000K
Luminous Flux-Lm 7500

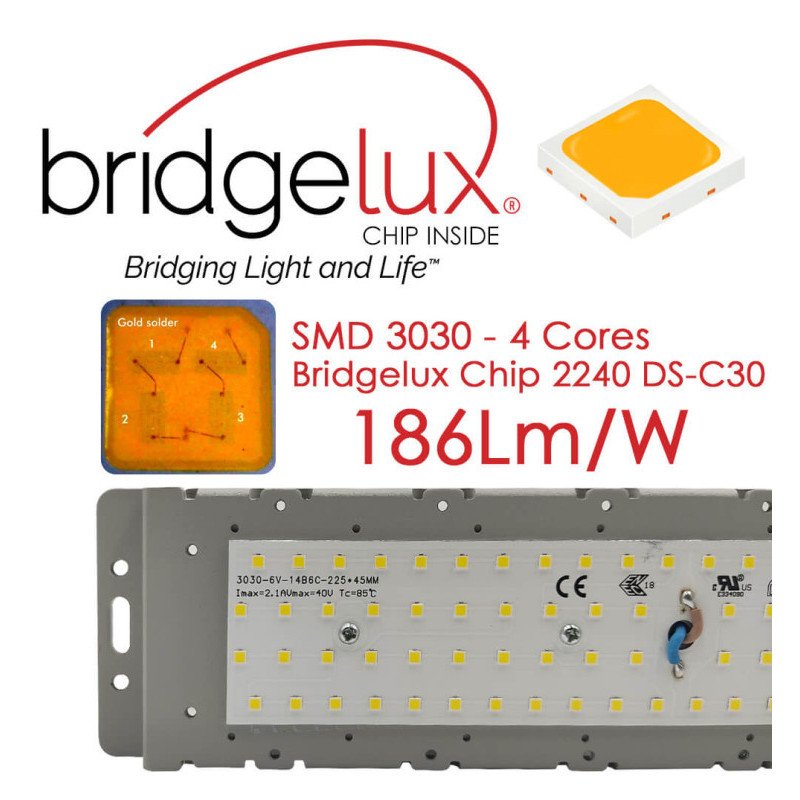

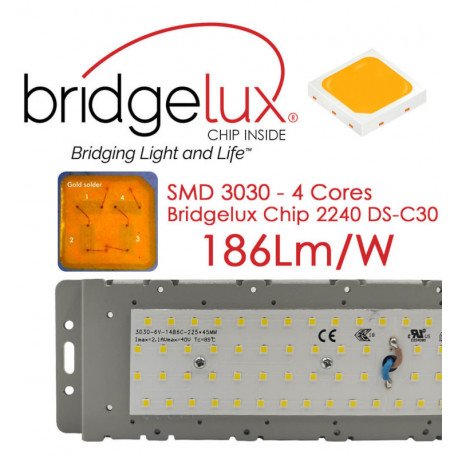

LED Type Bridgelux Chip inside 2240 DS-30
Beam Angle (º) 136x78º
Luminous Efficacy (Lm/W) 150 Lm/W
Additional Information Driver: 23-42 VDC 1300mA +-5% - 10KDelivery Forecast 15-20 days
Driver Included SI

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
